The LT Power Cables are used in electrical transmission in industrial units, panel board wiring, control systems and communication panel systems. These are impervious to water, oil and gas, and possess enhanced functional life thus providing resistance against abrasion, vibration and aging. These wires are flame retardant and does not support combustion. The wires have non- hygroscopic insulation, which is unaffected by moisture and non-migration of compound permitting vertical installation.
These are made available with superior grade Aluminum/Copper conductor and feature PVC/XLPE insulated cores laid up together with PVC inner with sheathed GI wire/strip finish. These are made available in armored or unarmored options and meet industry standards of IS:1554/Part-1/1988 & 7098.

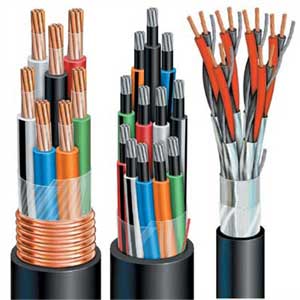

XLPE LT Power Cables
We are engaged in designing supreme quality XLPE LT Power Cables that are installed in underground and over head transmissions. Our XLPE LT power cables have minimal dielectric losses, better resistance to most chemicals, oils, acids etc. It has a tough and resilient sheath with excellent fire resisting qualities. Further, it has complete protection against most forms of electrolytic and chemical corrosion.
These are majorly used underground as well as over head transmission of power to the control panels in power plants, industries, projects and all the electrical installations. The insulation is provide from quality XLPE and sheath cab be PVC, HR PVC, FRLS, FR or HR-FRLS depending upon the application.
Features:-
- Provides for excellent mechanical, electrical, thermal and chemical properties
- Can handle higher current ratings that make it possible for using one lower size of cable in comparison to PVC
- Feature superior emergency overload withstand capacities with overload temperatures of up to 1300 C
- Has better ageing property with resistance to deformation under load conditions
- Can retain flexibility down up to 400C
- Features higher short circuit rating that allows withstanding short circuit temperatures up to 2500C
- Offers superior resistance to most chemicals like acids, bases & oils
- Very less dielectric losses
- Offers easy jointing & termination
- Allows easy handling during installation as these cables are of light weight finish
Available Range Up to 400 sq. mm. X 3.5 core, 1000 sq. mm x 1 core also 630 sq. mm

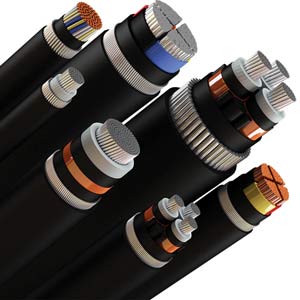

PVC LT Power Cables
The PVC LT Power Cables are installed in residential buildings, commercial buildings, communication panel systems and other electrical installations. Our cables are not affected by vibration and are proven to be highly durable. The PVC, we use in our power cables enhance the life of wires and is perfect for power supply. It is available in several standard as well as customized configurations to meet the requirements of clients.
Features:-
- High on Current Rating
- High on Overload Capacity
- High on Short Circuit Rating
- Light in Weight with small Bending Radius
- Lower Di-electric Constant & Power Factor
- Better Impact, Abrasion, Corrosion Resistance
- Easy to join and terminate
- Non- hygroscopic insulation unaffected by moisture
- Non- migration of compound permitting vertical installation
- Good ageing properties
- Unaffected by vibration
Available Range Up to 400 sq. mm. X 3.5 core, 1000 sq. mm x 1 core also 630 sq. mm
